SS600

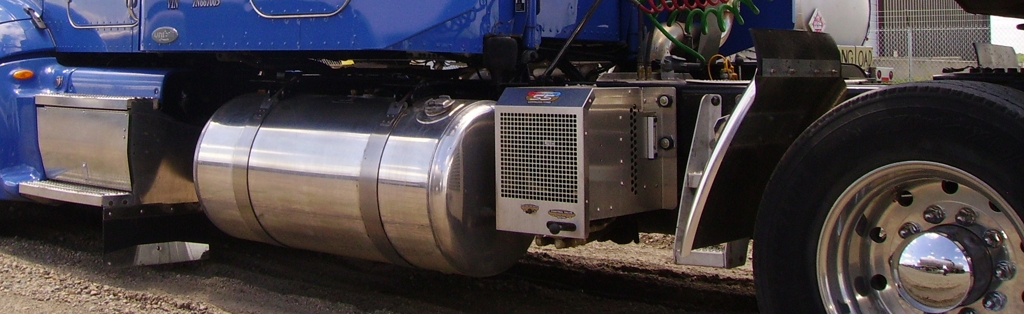

Frame Mounted Cooling
The SS600 will drive most 3" & 4" product pumps and compressors, with options for multi-pump applications.
Model Options
Fan - Hydraulic or Electric
An electric fan is a proven system for controlled cooling.
A hydraulic fan offers cooling without electrical controls.
Valve - Relief or Directional Control
The standard relief valve offers pressure protection, while a
directional control valve allows for easy rotation changes or drive selection.
Model Number SS600XY
SS - Stainless Steel
600 - Model #
X - Fan Motor
(E) Electric
(H) Hydraulic
Y - Valve Option
(R) Relief Valve
(V) Control Valve
Features
Strong Design: Stainless steel construction ensures long life and good looks. Heavy duty shock mounts are supplied standard, to isolate road vibration.
Easy Access: Entire front panel quickly removes to allow easy access to all parts.
No-Mess Oil Filter Replacement: Unique filter design allows replacement from top of unit, rather than the bottom, preventing oil spillage and unneccesary mess.
Specifications
Flow Rate: 30 gpm
Max Pressure: 5000 psi
Reservoir: 3.5 gallons
Warranty: 2 years
Dimensions: 15" x 17.5" x 20"
Suction port size: 1 1/2" NPT (Male)
Pressure port size: #12 JIC (Male)
Return port size: #12 JIC (Male)
